Decking that exquisitely replicates the beauty of natural oak.
![DuoSpan® Subframe](https://www.gfdhomes.co.uk/images/duospan-subframe.png)
DuoSpan® Subframe
![DuoLift® Joist Pedestal](https://www.gfdhomes.co.uk/images/duolift-joist-pedestal.png)
DuoLift® Joist Pedestal
![Plas-Pro](https://www.gfdhomes.co.uk/images/plas-pro.png)
Plas-Pro
![Duokit](https://www.gfdhomes.co.uk/images/duokit.png)
Duokit
![Touch Up Coating](https://www.gfdhomes.co.uk/images/touch-up-coating.png)

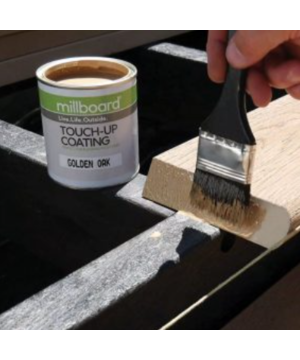

Touch Up Coating
![Fixings](https://www.gfdhomes.co.uk/images/fixings.png)

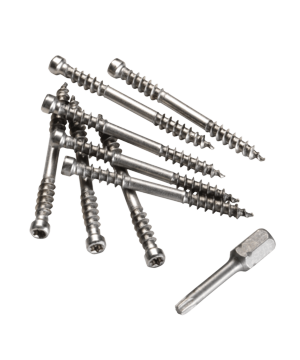

Fixings
![Fixing Guide](https://www.gfdhomes.co.uk/images/fixing-guide.png)
Fixing Guide
![DuoSpan Subframe](https://www.gfdhomes.co.uk/images/duospan-subframe.png)

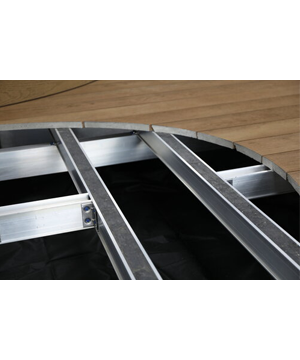

DuoSpan® Subframe
Designed to do more. Engineered to last.
DuoSpan® combines the strength of aluminium with the design flexibility of recycled plastic. This achieves a system that provides exceptional ease of installation, enormous strength and durability, and the scope to construct stunning decks and structures that would be impossible with conventional subframes.
What is DuoSpan®?
DuoSpan® provides the perfect subframe for Millboard decking, as well as a universal support system for other outdoor flooring. Its ingenious design facilitates top-down fixing of decking boards and makes it an easy installation for all levels of competence.
DuoSpan® has been designed by industry professionals to comply with Eurocode 1: Actions on Structures (BS EN 1991-1-1), and is available in component form, or in five simple off-the-shelf kits, for ease of ordering.
![Flexible Connectivity](https://www.gfdhomes.co.uk/images/flexible-connectivity.jpeg)

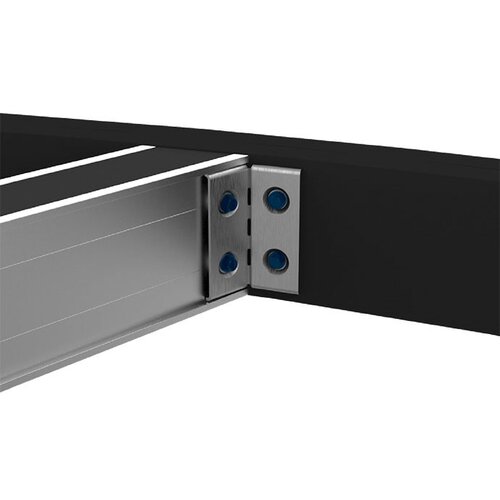

Flexible connectivity
Multiple bracket types for all types of joints, including Flexible Brackets for non-standard angles.
![Slot and Screw Assembly](https://www.gfdhomes.co.uk/images/slot-and-screw-assembly.jpeg)

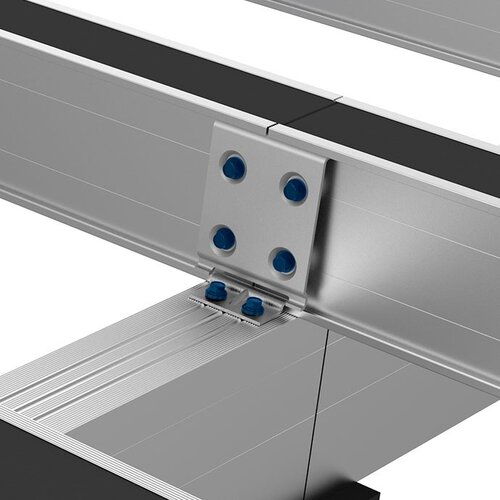

Slot-and-screw Assembly
Screw-locating grooves and self-drilling screws ensure accurate alignment and a fast fix that’s right every time.
![Flexible Connectivity](https://www.gfdhomes.co.uk/images/unique-curved-constructions.jpeg)

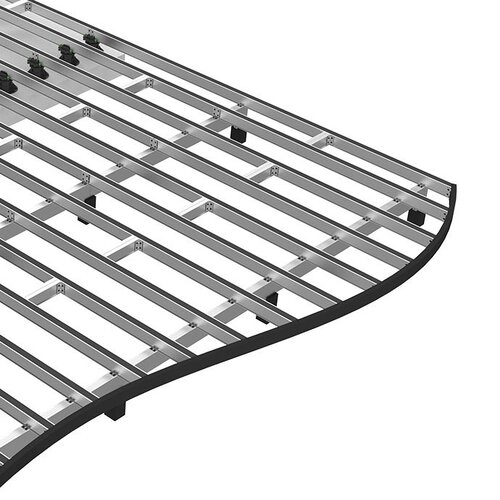

Unique curved constructions
The combination of rigid DuoSpan® with flexible Plas-Pro enables the construction of stunning curved formations.
![Slot and Screw Assembly](https://www.gfdhomes.co.uk/images/exceptional-spans.jpeg)

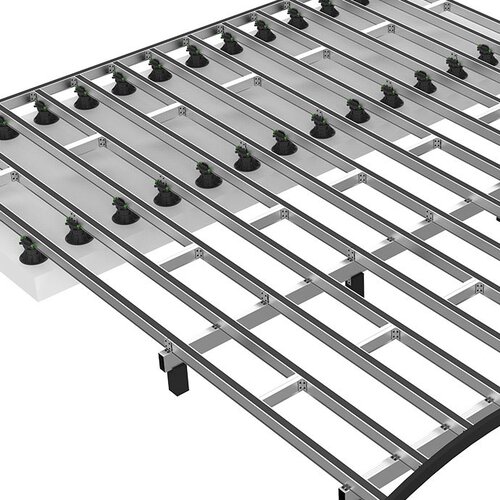

Exceptional spans
The DuoSpan® 99mm Joist provides an exceptional 1800mm span in residential applications, reducing posts or joist supports required.
![Slot and Screw Assembly](https://www.gfdhomes.co.uk/images/corrosion-resistant.jpeg)

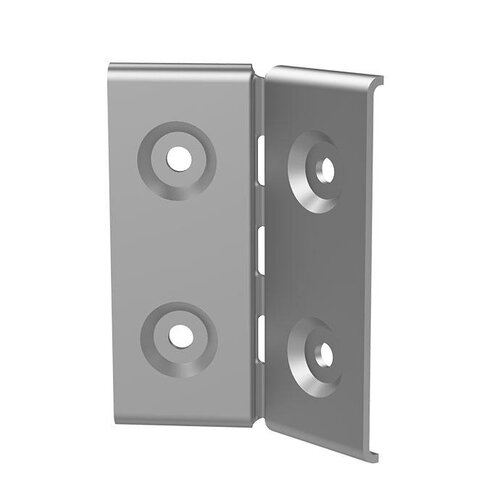

Corrosion-resistant
Galvanic corrosion between different metals is minimised with our cathodic barrier fixings.
![Slot and Screw Assembly](https://www.gfdhomes.co.uk/images/simple-stable-fixing.jpeg)

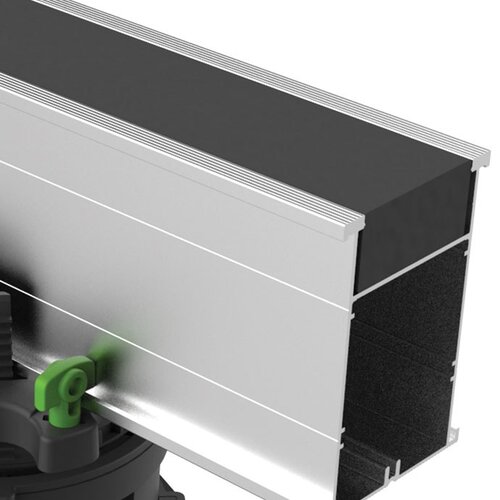

Simple, stable fixing
Decking and cladding can be easily and securely screwed directly into the DuoSpan® subframe at almost any angle using Durafix 45mm screws.

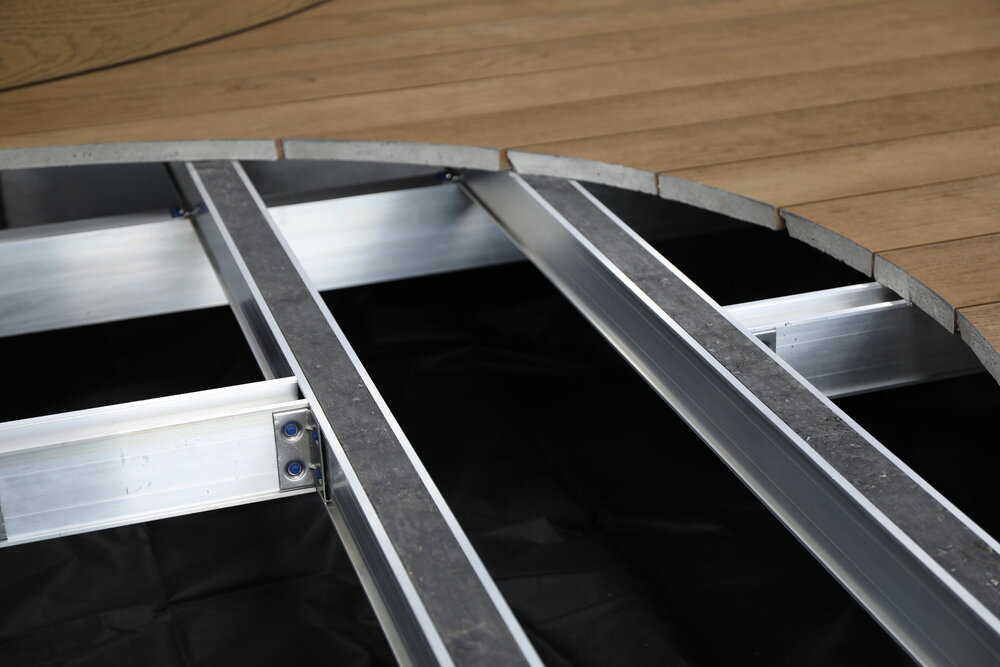

DuoLift® Joist Pedestal
The versatile and user-friendly subframe support system.
DuoSpan® combines the strength of aluminium with the design flexibility of recycled plastic. This achieves a system that provides exceptional ease of installation, enormous strength and durability, and the scope to construct stunning decks and structures that would be impossible with conventional subframes.
What is DuoLift®?
The DuoLift® joist pedestal system was designed to make installation significantly easier and to ensure successful outcomes. Providing substantial height flexibility within four stackable components, DuoLift® removes the common problem of having to order varying height pedestals for a single area.

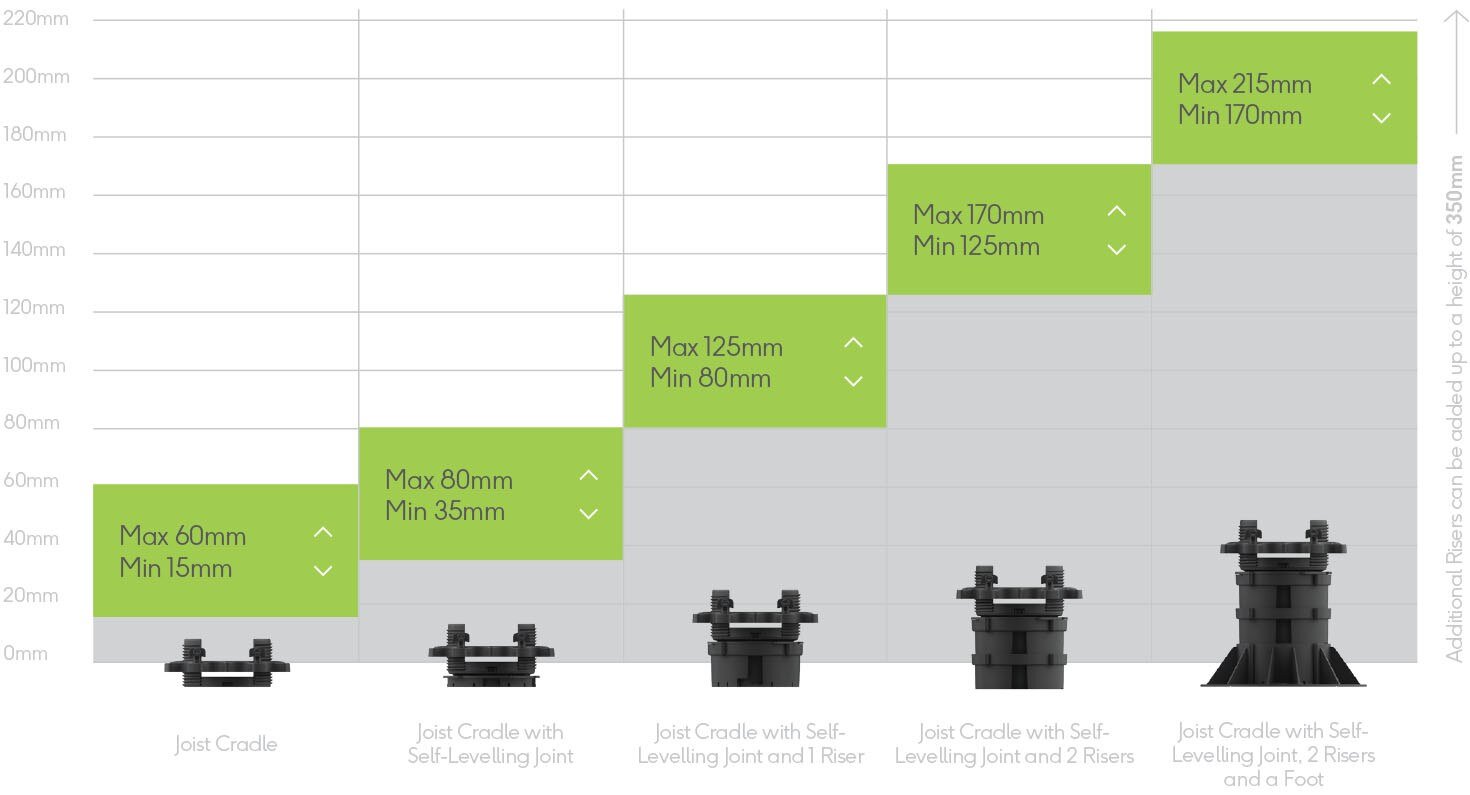

Height-adjustable from 15mm, DuoLift™ makes accurate height-setting easy, and is self-levelling from 35mm upwards.
![DuoLift Joist Pedestal](https://www.gfdhomes.co.uk/images/duolift-joist-pedestal-tile.jpeg)
![DuoLift Joist Cradle 15-60mm](https://www.gfdhomes.co.uk/images/duolift-joist-cradle.jpeg)

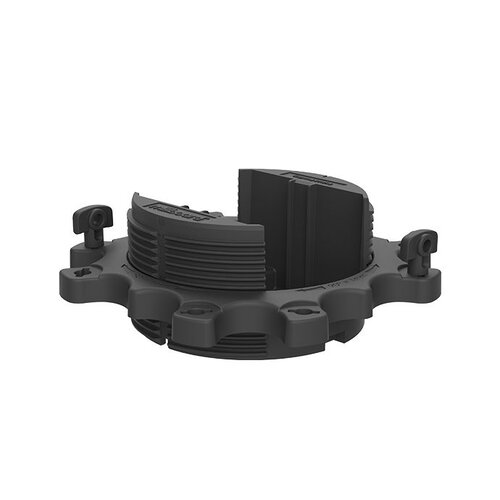

DuoLift Joist Cradle 15-60mm
Providing an exceptional height range of 45mm, from 15-60mm, the DuoLift® Joist Cradle enables precision height adjustment with 5mm markings on the side and each quarter turn of the adjustment ring representing a 1mm rise or fall.
![DuoLift Self-Levelling Joint 20mm](https://www.gfdhomes.co.uk/images/duolift-self-levelling-joint.jpeg)

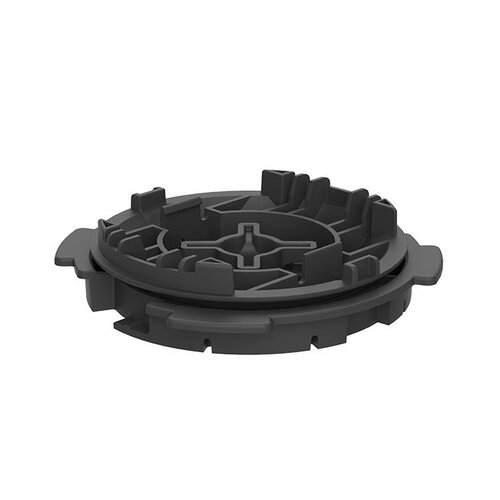

DuoLift Self-Levelling Joint 20mm
Adding 20mm to the height of the supports, the Self-levelling Joint provides easy and effective levelling of a subframe up to 5º, ready for decking installation. Suitable for standing directly onto a solid substrate, or for providing a joint for a higher support.
![DuoLift Riser 45mm](https://www.gfdhomes.co.uk/images/duolift-riser.jpeg)

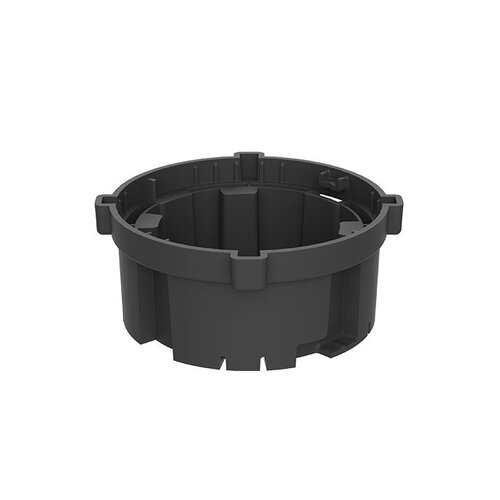

DuoLift Riser 45mm
The Riser component of the DuoLift® system increases the height in increments of 45mm. It is capable of sitting directly onto a solid substrate under the Joist Cradle and Self-Levelling Joint or forming part of a higher stack with a foot beneath.
![DuoLift Joist Foot 45mm](https://www.gfdhomes.co.uk/images/duolift-joist-foot.jpeg)

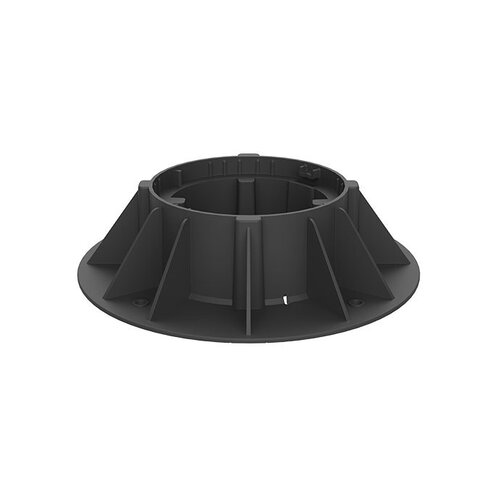

DuoLift Joist Foot 45mm
The DuoLift® Foot provides a very stable footing for more elevated subframes, raising the height by 45mm and spreading the load further across the substrate, due to the 220mm base supporting a maximum combined height of 350mm.
![DuoLift Acoustic Separation Pad 3mm](https://www.gfdhomes.co.uk/images/duolift-acoustic.jpeg)

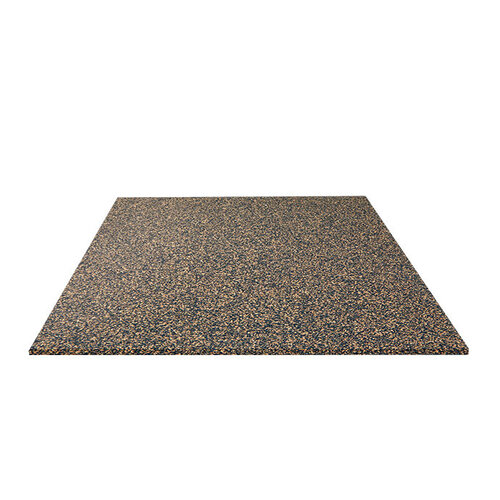

DuoLift Acoustic Separation Pad 3mm
Agglomerated cork and recycled rubber pads offer a layer of protection between joist supports and membranes, as well as providing an acoustic benefit.
![Height Chart](https://www.gfdhomes.co.uk/images/height-diag.jpeg)
![Plas-Pro](https://www.gfdhomes.co.uk/images/plas-pro-tile.webp)

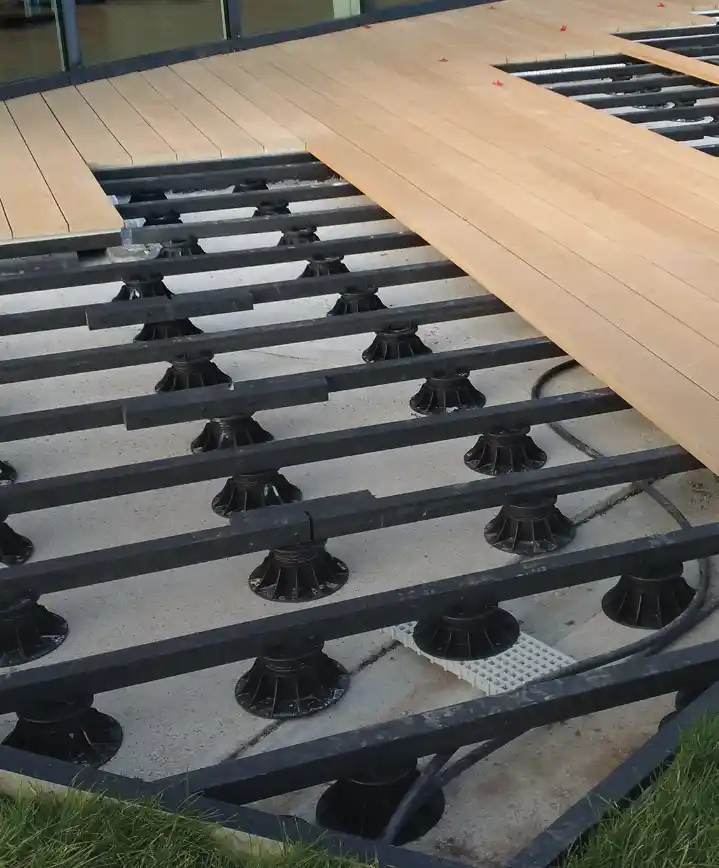

Plas-Pro
Recycled plastic joists and beams for enduring construction.
Plas Pro is Millboard’s premium 100% recycled subframe material and can be used alone or as part of our new DuoSpan landscaping subframe system. This all-weather, durable and flexible material is a practical alternative to timber and is perfectly suited to spaces exposed to damp, such as jetties, pools, roof terraces and boardwalks.
What is Plas-Pro?
Plas-Pro is made from 100% recycled plastic. By using selected graded materials and cleverly engineered processes, Plas-Pro provides key environmental benefits and the assurance of superior quality performance.
![Joist/Bearer](https://www.gfdhomes.co.uk/images/plaspro-joist-bearer.jpeg)

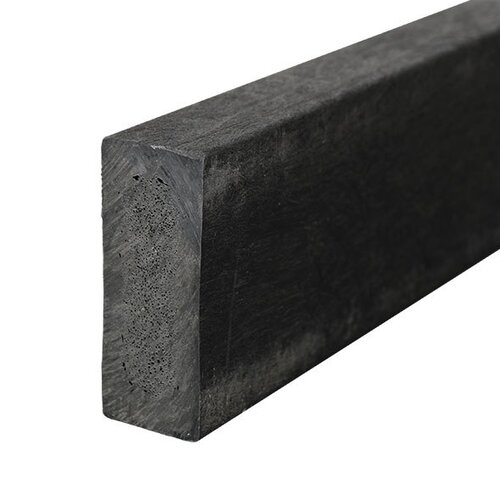

Plas-Pro 125 x 50mm Joist/Bearer
Designed to be used in conjunction with Plas-Pro 100 x 100mm Posts when installed over a soil/earth base.
Dimensions 125 x 50 x 3000mm
Product Code P1205B300
![Slot and Screw Assembly](https://www.gfdhomes.co.uk/images/plaspro-joist-1.jpeg)

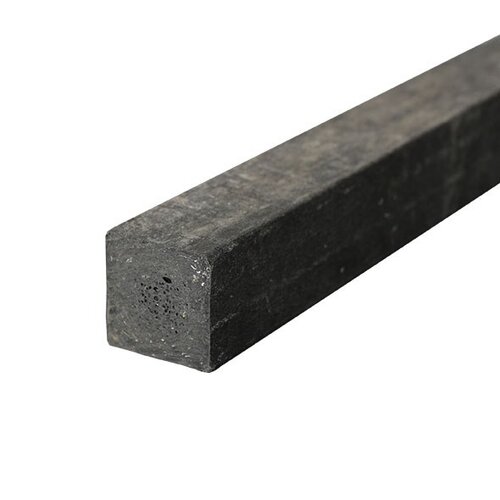

Plas-Pro 50 x 50mm Joist
Designed to be used in conjunction with the DuoLift system when installed over a solid/stable substrate.
Dimensions 50 x 50 x 2400mm
Product Code P0505B240
![PlasPro Joist](https://www.gfdhomes.co.uk/images/plaspro-joist-2.jpeg)

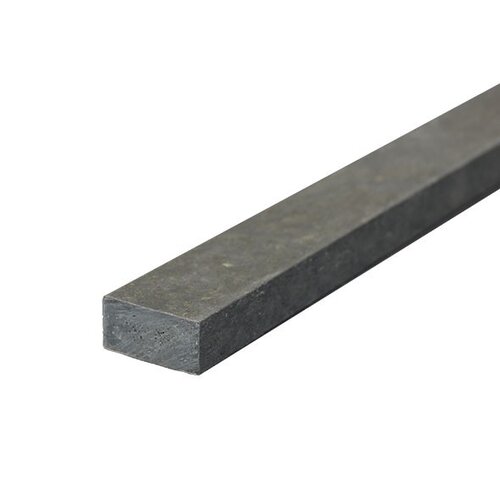

Plas-Pro 60 x 30mm Joist
Designed to be used in low-level areas with a solid/stable base. Not to be raised with cradles.
Dimensions 60 x 30 x 2800mm
Product Code P0603H280
![PlasPro Post](https://www.gfdhomes.co.uk/images/plaspro-post.jpeg)

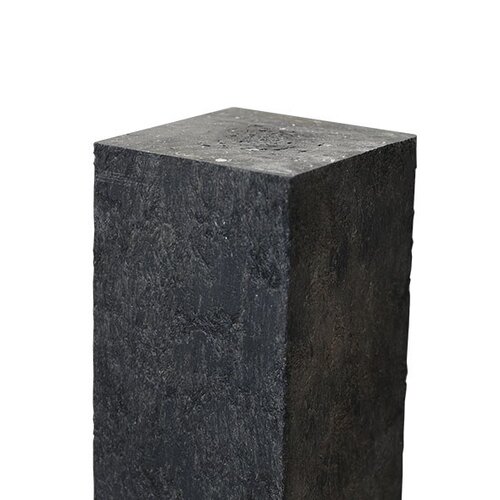

Plas-Pro 100 x 100mm Post
Designed to be used in conjunction with Plas-Pro 125 x 50mm Joist/Bearers when installed over a soil/earth base.
Dimensions 100 x 100 x 3000mm
Product Code P1010B300
DuoKit™
The easy-to-use kit to assemble your subframe.
DuoKit is designed to work with the width of our Enhanced Grain decking boards and all colours are available. You can order the boards as an additional purchase and they will be supplied in full lengths with the correct number of fixings needed to use in conjunction with DuoKit.
What is DuoKit™?
Plas-Pro is made from 100% recycled plastic. By using selected graded materials and cleverly engineered processes, Plas-Pro provides key environmental benefits and the assurance of superior quality performance.
Since the launch of DuoSpan and DuoLift, Millboard has looked at how to make installation of our new subframe system as easy as possible. DuoKit gives you peace of mind that you’ll have everything to hand that you need to assemble your subframe. DuoKit is designed to be used on residential applications due to the joist centres and spans. For commercial applications, you should follow the guidance in our DuoSpan and DuoLift installation guide below.
Available add-ons to work with DuoKit are DuoLift™, Millboard Enhanced Grain decking and Edging and Fascia.
![DuoLift Joist Pedestal](https://www.gfdhomes.co.uk/images/duokit-tile.webp)
DuoKit is available for the following deck sizes:
- 1.2m x 3.6m (KK1236), exact size with boards – 1200mm x 3614mm
- 1.8m x 3.6m (KK1836), exact size with boards – 1804mm x 3600mm
- 2.4m x 2.4m (KK2424), exact size with boards – 2347mm x 2400mm
- 3.6m x 3.6m (KK3636), exact size with boards – 3614mm x 3600mm
- 3.6m x 5.4m (KK5436), exact size with boards – 3614mm x 5400mm
For larger sized decks, two kits can be put together.
![DuoKit layout 1.2m x 3.6m](https://www.gfdhomes.co.uk/images/duokit-example-1.png)

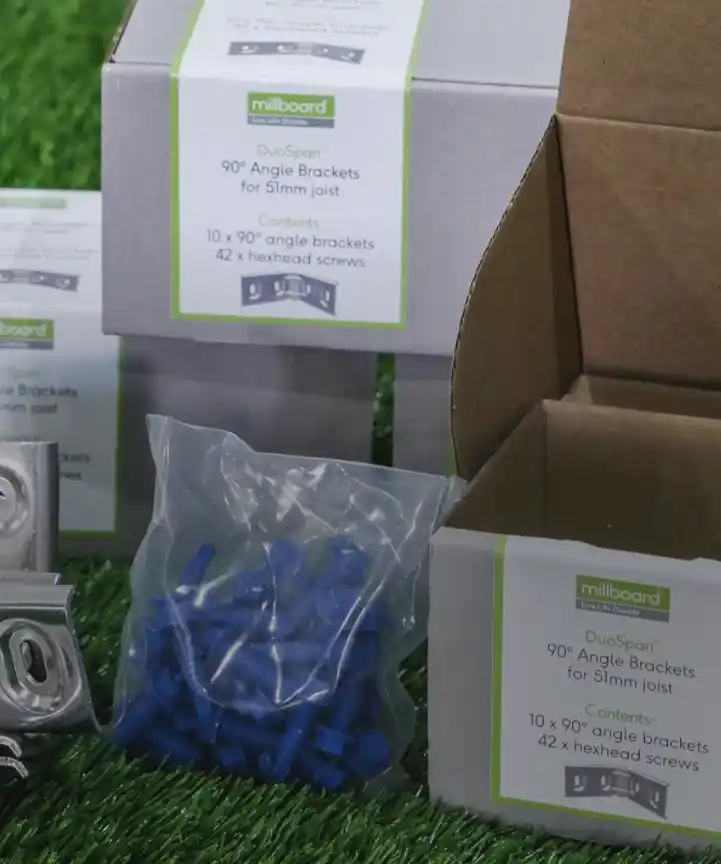

DuoKit contains the following items:
1. DuoSpan 51mm Joists
2. DuoSpan Joist Inserts
3. DuoSpan 51 90° Angle Brackets (boxes of 10)

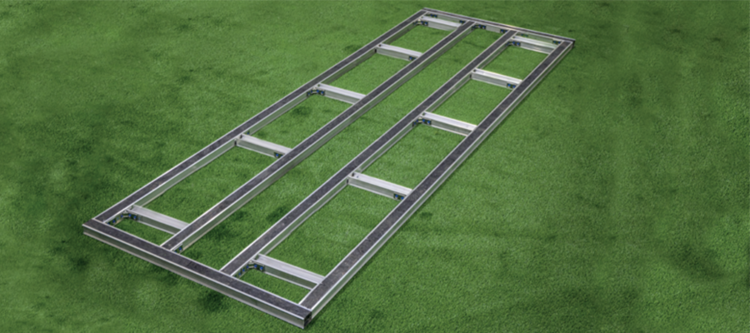

DuoKit layout for 1.2m x 3.6m:

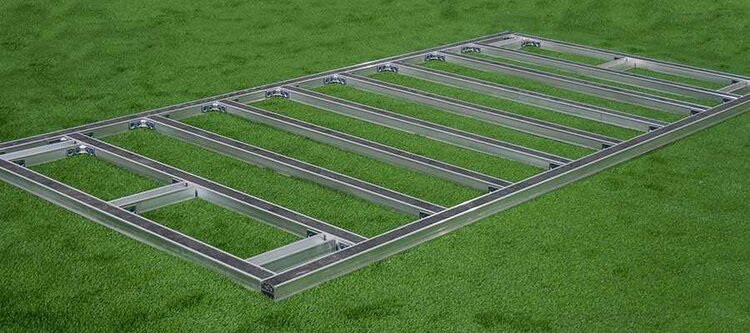

DuoKit layout for 1.8m x 3.6m, 2.4m x 2.4m, 3.6m x 3.6m and 3.6m x 5.4m:
![DuoKit layout 1.2m x 3.6m](https://www.gfdhomes.co.uk/images/duokit-example-2.jpg)
![Touch Up Coating](https://www.gfdhomes.co.uk/images/touch-up-coating-tile.png)

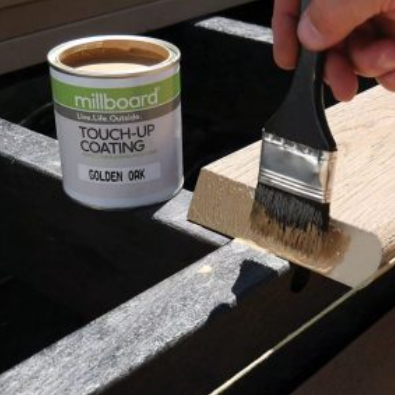

Touch Up Coating
Perfect for blending in cut ends, our touch-up coating is supplied in 500ml tins and in a range of eight colours to match your choice of Millboard decking.
![Antique Oak Touch Up Coating](https://www.gfdhomes.co.uk/images/antique-oak-tuc.jpeg)

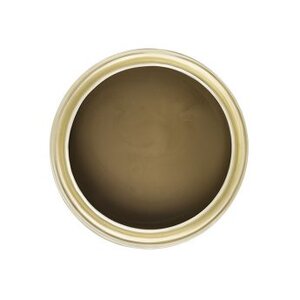

Antique Oak
500ml AP500A
![Brushed Basalt Touch Up Coating](https://www.gfdhomes.co.uk/images/brushed-basalt-tuc.jpeg)

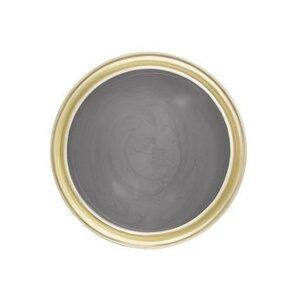

Brushed Basalt
500ml AP500B
![Burnt Cedar/Embered Touch Up Coating](https://www.gfdhomes.co.uk/images/burnt-ceder-embered-tuc.jpeg)

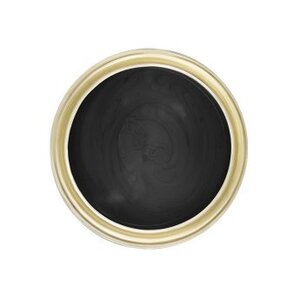

Burnt Cedar/Embered
500ml AP500R
![Coppered Oak Touch Up Coating](https://www.gfdhomes.co.uk/images/coppered-oak-tuc.jpeg)

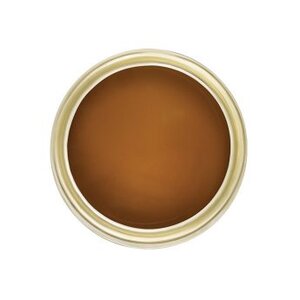

Coppered Oak
500ml AP500C
![Golden Oak Touch Up Coating](https://www.gfdhomes.co.uk/images/golden-oak-tuc.jpeg)
Golden Oak
500ml AP500G
![Jarrah Touch Up Coating](https://www.gfdhomes.co.uk/images/jarrah-tuc.jpeg)

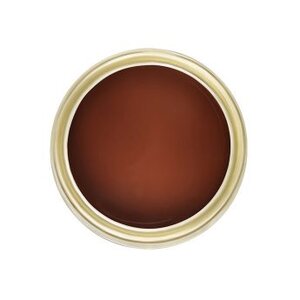

Jarrah
500ml AP500J
![Limed Oak Touch Up Coating](https://www.gfdhomes.co.uk/images/limed-oak-tuc.jpeg)

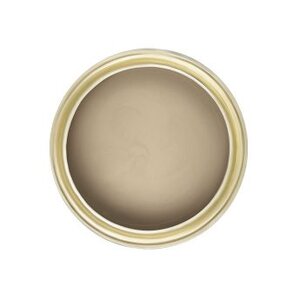

Limed Oak
500ml AP500L

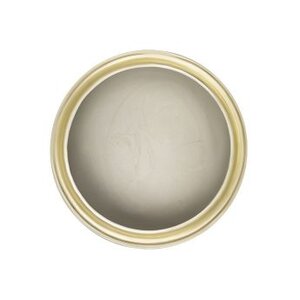

![Smoked Oak/Driftwood Touch Up Coating](https://www.gfdhomes.co.uk/images/smoked-oak-driftwood-tuc.jpeg)
Smoke Oak/Driftwood
500ml AP500D
![Vintage Touch Up Coating](https://www.gfdhomes.co.uk/images/vintage-tuc.jpeg)

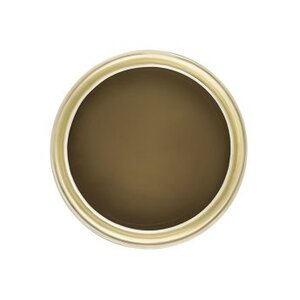

Vintage
500ml AP500V

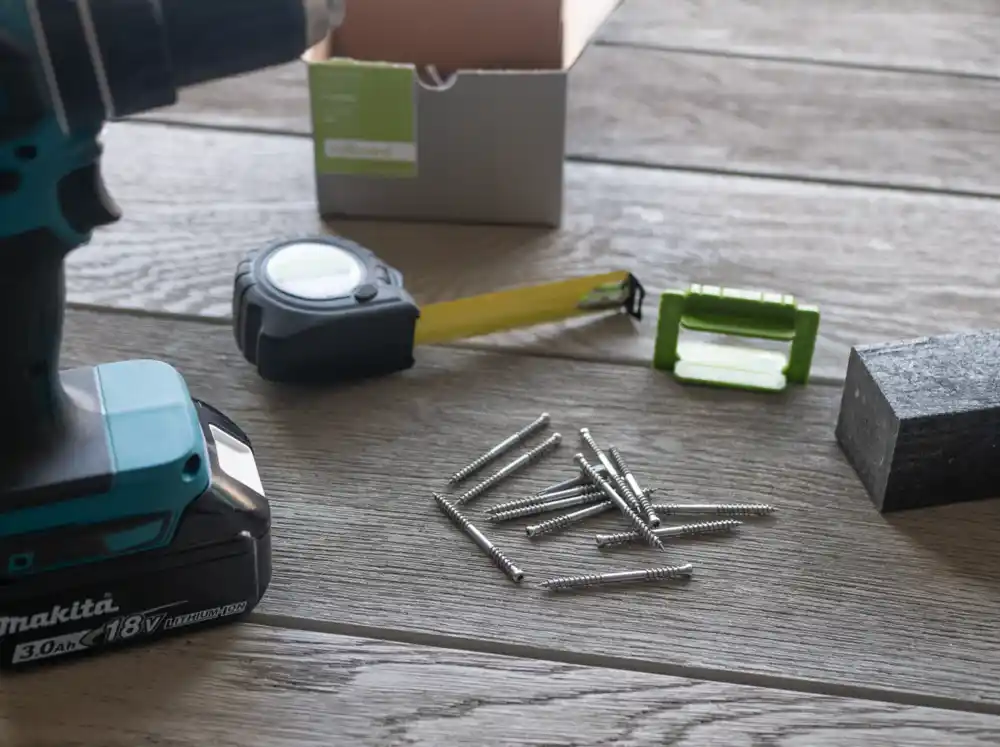

Fixings
Our range of fixings are exclusive to Millboard and enable a beautiful finish every time, especially when used with the handy fitting tool.
![Fixings](https://www.gfdhomes.co.uk/images/fixings-tile.webp)
![Durafix](https://www.gfdhomes.co.uk/images/fixings-1.png)

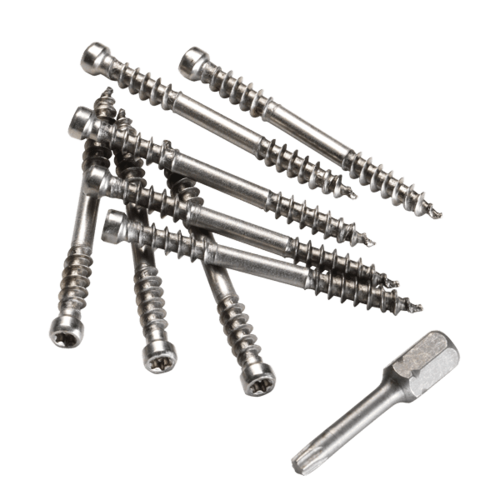

Durafix®
Our unique, hidden decking fixings make installing Millboard simple. There’s no pre-drilling, countersinking or clip fixings needed – all you need to do is screw them in. Once they’re in, the Millboard Lastane® coating simply flexes back over the screw, leaving a virtually indistinguishable mark and creating a cleaner finish. Made from stainless steel, the screws have a self-cutting tip, six-point Torx head, and are waxed for ease of use. And the drill bits are even included in the box.
Reference codes
4.5 x 60mm Box of 250: FT60P250, 4.5 x 45mm Box of 250: FT45P250
*Approx number required – 22 fixings per board
![35mm Durafix Fascia screw](https://www.gfdhomes.co.uk/images/fixings-2.png)

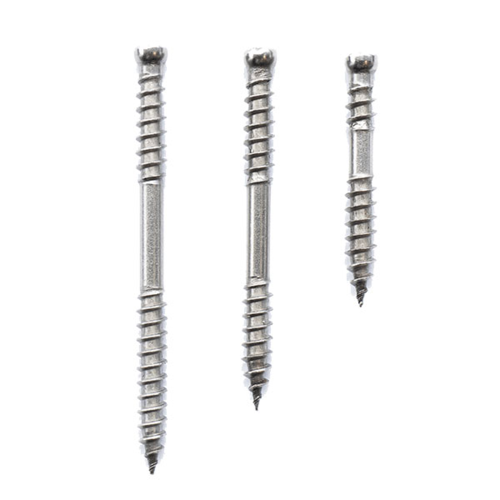

35mm Durafix® Fascia screw
The 4.5x35mm Durafix® Fascia screw is a fixing that is to be used only with the Fascia boards. The purpose of the 35mm Durafix Fascia screw is for situations where the Fascia is being fitted to thinner battens (batten depth can be 25mm or greater), where a longer screw wouldn’t work. The Durafix Fascia screw, like the other Durafix fixings, is made from A2 stainless steel and features the same ‘tulip-shaped’ torx drive head. Once they’re in, the Millboard Lastane® coating on every board simply flexes back over the screw, leaving a virtually indistinguishable mark.
Reference codes
4.5 x 35mm Box of 100: FT35P10
![Subframe hexhead screw](https://www.gfdhomes.co.uk/images/fixings-3.png)

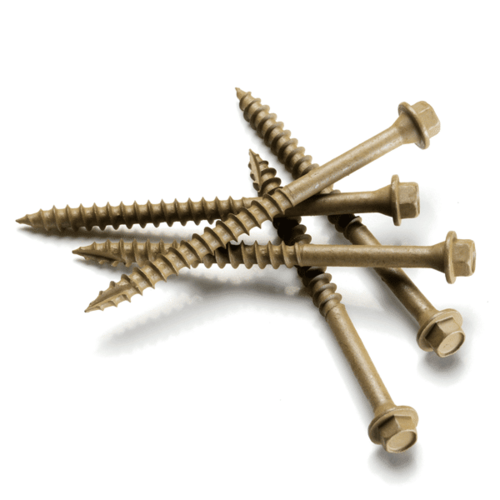

Subframe hexhead screw
Our subframe screw fixings make installing Millboard Plas-Pro subframes simple. With just a pre-drilled hole required, these heavy-duty coated hex flange head screws have a type 17 ‘gash’ point to reduce drive torque. They are also suitable for timber subframe systems. Please note screw coating colour may vary.
Reference codes
6.3 x 90mm Box of 50: FH90P050
![Millboard Multi-spacer 3-6mm](https://www.gfdhomes.co.uk/images/fixings-4.png)

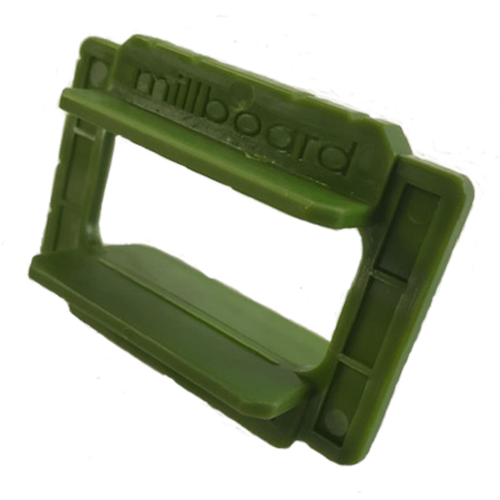

Millboard Multi-Spacer 3-6mm
The robust Millboard Multi-spacer is specifically designed to enable the fixing of Millboard decking both quicker and more accurately. At the same time, ‘The Millboard Multi-spacer’ allows accurate spacing of any of the four most popular board spacings, using just the one spacer Tool.
Reference codes
Bag of 10: FP36P010
![DuoFix Side-Fixing Guide](https://www.gfdhomes.co.uk/images/side-fixing-tile.png)

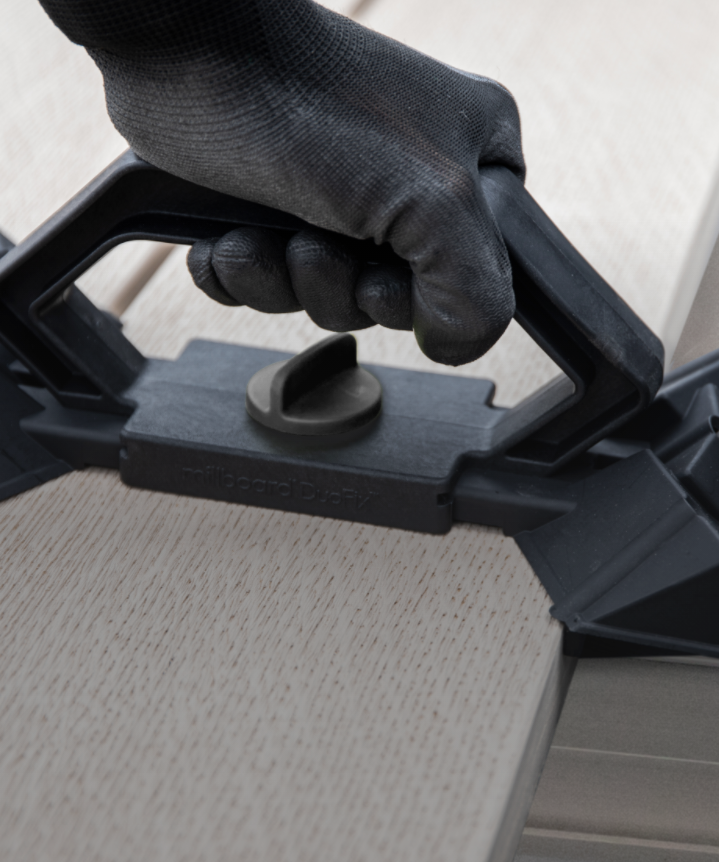

DuoFix Side-Fixing Guide
Our quick and easy fixing solution for a completely clean finish
Our innovative tool provides a quick and easy solution to fix the boards from the side, resulting in a clean, hidden fixing finish, keeping the face of the board completely clear of screw holes. This quality gives a clean look, even when used with lighter coloured boards.
How do I use the side-fixing guide?
To use, the Guide simply lays over the decking board and is adjustable to board widths of 145-200mm, making it compatible with all Millboard decking boards, and even some softwood decking boards.
When used in combination with Durafix® screws and the complimentary driver bit, the Guide aligns the screws perfectly and controls the fixing depth too, providing a 6mm spacing between boards.
